Using Azure Cosmos persistence with NServiceBus

Introduction

NServiceBus has been a well-known messaging and workflow solution for the .NET platform for over a decade. It offers reliability, maintainability, and scalability for distributed workflows. NServiceBus supports various queuing technology, aka transport, such as MSMQ, Azure Service Bus, Rabbit MQ, Amazon SQS, etc. In addition to this, it has support for datastore or persistence such as SQL, Cosmos DB, MongoDB, Raven DB, etc.

Cosmos DB, on the other hand, is a fully managed No SQL database service on Azure. Cosmos DB is robust, and it is growing at a rapid pace. So much so that my 2-year old post on Cosmos DB has a lot of outdated information, and it needs a complete refresh.

This post will discuss how you can use these two world-class products to build your distributed system.

Source Code

You can download the sample application that I will work on within this post from my GitHub repository.

The post assumes that you have a basic understanding of distributed systems, NServiceBus, and Cosmos DB. To run the solution on your local machine, you would need the following:

• .NET 6
• Azure Cosmos DB Emulator
• NServiceBus Free Community License

Architecture

As part of this exercise, we will build a new social platform called Twitbook(naming is hard). Twitbook is still in beta and only offers two features:

• It allows the author to create a new post
• People can comment on the post

We will offer these two features through API and save the data to Cosmos DB asynchronously using a background worker. We will also use the NServiceBus to make our distributed system reliable and scalable.

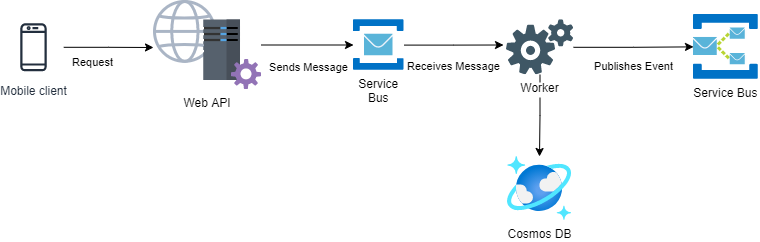

Here is the architecture.

Twitbook Architecture

The solution structure

Our solution consists of the following three projects:

• Api: Api project receives a request from the client and sends the message to the service bus using NServiceBus. For simplicity and demo, we are using NService Learning transport instead of real service bus. In the real world, we would use transport such as Azure Service Bus.
• Messages: This project contains the commands and events that we will send or publish using NServiceBus.
• Worker: The worker receives a message from service bus, saves it to Cosmos and publishes the event when save is successful. The published event can be subscribed by different services downstream and use for purposes such as updating state of an external system, reporting, and so on.

The solution structure

Building the sample

Api Project – Setting up NServiceBus and Swagger

Let us start with creating the Web API. We will first add NServiceBus using NServiceBus.Extensions.Hosting nuget package.

var builder = WebApplication.CreateBuilder(args);
builder.Host.UseNServiceBus(_ =>
{
    var endpointConfiguration = new EndpointConfiguration("Samples.Api");
    var transport = endpointConfiguration.UseTransport<LearningTransport>();
    var routing = transport.Routing();
    routing.RouteToEndpoint(Assembly.Load("Messages"), "Samples.Worker");
    endpointConfiguration.SendOnly();
    return endpointConfiguration;
});

API – Use NServiceBus

For API discovery, we will use Swagger.

builder.Services.AddEndpointsApiExplorer();
builder.Services.AddSwaggerGen(options =>
            {
                options.SwaggerDoc("v1", new OpenApiInfo { Title = "Posts Api", Version = "v1" });
            });

var app = builder.Build();
.
.
app.UseHttpsRedirection()
   .UseStaticFiles()
   .UseSwagger()
   .UseSwaggerUI(options => { options.SwaggerEndpoint("v1/swagger.json", "Posts Api"); })
   .UseRouting();

API – Set up Swagger

Api Project – Create API endpoints

Next, we will add API endpoints to create a post and add comments to the post.

We are using the shiny new minimal APIs to develop our endpoints.

It is important to note that the endpoint will not create the post synchronously. It will put the Command on the bus and return Accepted to the client.

app.MapPost("/create", async (IMessageSession messageSession, [FromBody] Post post) =>
{
    var addPostCommand = new Messages.AddPost(post.Title, post.Description, post.Author);
    await messageSession.Send(addPostCommand);
    return Results.Accepted(null, new { addPostCommand.PostId });
});

app.MapPost("/add-comment", async (IMessageSession messageSession, [FromBody] Comment comment) =>
{
    var addCommentCommand = new Messages.AddComment(comment.PostId, comment.Content, comment.CommentBy);
    await messageSession.Send(addCommentCommand);
    return Results.Accepted(null, new { addCommentCommand.CommentId });
});

app.Run();

public record Post(string Title, string Description, string Author);
public record Comment(string PostId, string Content, string CommentBy);

Create API endpoints

Messages Project – Commands

The commands AddPost and AddComment inherit from an interface IPostIdPartitionKey . The interface contains a single property PostId which will be the partition key for Post and Comment documents in Cosmos DB. I will talk more about this later. But for now, here is how our messages look like:

public interface IPostIdPartitionKey
{
  string PostId { get; set; }
}

public class AddPost : ICommand, IPostIdPartitionKey
{
    public AddPost(string title, string description, string author)
    {
        Title = title;
        Description = description;
        Author = author;
        PostId = Guid.NewGuid().ToString();
    }
    public string PostId { get; set; }
    public string Title { get; set; }
    public string Description { get; set; }
    public string Author { get; }
}

public class AddComment : ICommand, IPostIdPartitionKey
{
  public AddComment(string postId, string content, string commentBy)
  {
      PostId = postId;
      CommentId = Guid.NewGuid().ToString();
      Content = content;
      CommentBy = commentBy;
  }

  public string CommentId { get; set; }
  public string PostId { get; set; }
  public string Content { get; set; }
  public string CommentBy { get; set; }
}

NServiceBus Commands

Cosmos DB Data structure

We will keep the original post and the associated comments of the post in separate JSON documents sharing the same partition key. It is because comments are unbonded collection and hierarchical data structure is better suited to save them. You can read more about design consideration when working with Cosmos DB here.

We will use PostId as our partition key in Cosmos.

Worker Project – Domain

Before we go further, let us first look at how our domain objects that we save to Cosmos look.

public class Post
{
    public Post(string postId,
        string title,
        string description,
        string author)
    {
        Id = postId;
        PostId = postId;
        Title = title;
        Description = description;
        Author = author;
        LastUpdatedDate = DateTime.UtcNow;
        CreatedDate = DateTime.UtcNow;
    }

    [JsonProperty("id")] public string Id { get; set; }
    public string PostId { get; set; }
    public string Title { get; set; }
    public string Description { get; set; }
    public string Author { get; set; }
    public DateTime LastUpdatedDate { get; set; }
    public DateTime CreatedDate { get; set; }
}

public class Comment
{
    public Comment(string postId,
        string commentId,
        string content,
        string commentedBy)
    {
        Id = commentId;
        PostId = postId;
        Content = content;
        CommentedBy = commentedBy;
        CreatedDate = DateTime.UtcNow;
    }

    [JsonProperty("id")] public string Id { get; set; }
    public string PostId { get; set; }
    public string Content { get; set; }
    public string CommentedBy { get; set; }
    public DateTime CreatedDate { get; set; }
}

Domain

As you can see, both Post and Comment domain objects have the property PostId that serves as a partition key in Cosmos.

Worker Project – NServiceBus Behavior

We will create an NServiceBus behavior that will set the Cosmos DB partition key in the incoming message context in the NServiceBus pipeline. It is a crucial step to get the Cosmos DB transaction batch to work with the NServiceBus persistence session.

public class PostIdAsPartitionKeyBehavior: Behavior<IIncomingLogicalMessageContext>
{
    public override Task Invoke(IIncomingLogicalMessageContext context, Func<Task> next)
    {
        if (context.Message.Instance is IPostIdPartitionKey partitionKey)
        {
            var partitionKeyValue = partitionKey.PostId;
            context.Extensions.Set(new PartitionKey(partitionKeyValue));

            return next();
        }

        return next();
    }

    public class Registration : RegisterStep
    {
        public Registration() :
            base(nameof(PostIdAsPartitionKeyBehavior),
                typeof(PostIdAsPartitionKeyBehavior),
                "Determines the PartitionKey from the logical message",
                b => new PostIdAsPartitionKeyBehavior())
        {
            InsertBefore(nameof(LogicalOutboxBehavior));
        }
    }
}

PostIdAsPartitionKeyBehaviour

The NServiceBus Cosmos DB sample inspires the above code. If you are not familiar with NServiceBus behavior, please see this post.

Next, we will configure NServiceBus for our worker. We need to import NServiceBus.Persistence.CosmosDB nuget package along with usual NServiceBus.Extensions.Hosting

Worker Project – NServiceBus Setup

await Host.CreateDefaultBuilder(args)
    .UseNServiceBus((_ =>
    {
        var endpointConfiguration = new EndpointConfiguration("Samples.Worker");
        var transport = endpointConfiguration.UseTransport<LearningTransport>();
        transport.Transactions(TransportTransactionMode.SendsAtomicWithReceive);

        endpointConfiguration.UsePersistence<CosmosPersistence>()
            // Using Cosmos emulator
            .CosmosClient(new CosmosClient(
                "AccountEndpoint=https://localhost:8081/;AccountKey=C2y6yDjf5/R+ob0N8A7Cgv30VRDJIWEHLM+4QDU5DE2nQ9nDuVTqobD4b8mGGyPMbIZnqyMsEcaGQy67XIw/Jw=="))
            .DatabaseName("Twitbook")
            .DefaultContainer("Posts", "/PostId");

        endpointConfiguration.EnableOutbox();

        endpointConfiguration.Pipeline.Register(new PostIdAsPartitionKeyBehavior.Registration());

        endpointConfiguration.EnableInstallers();
        return endpointConfiguration;
    }))
    .Build()
    .RunAsync();

Worker – Use NServiceBus

As you can see in the above code, there are three major points in this step up:

• We use NServiceBus Cosmos persistence. The Cosmos DB connection string points to the emulator for testing purposes. This allows us to use CosmosPersistenceSession in our handler.
• We have enabled NServiceBus outbox. Outbox pattern ensures all message handlers are idempotent. It also gurantees atomic transaction distributed across the business data stored in Cosmos DB and the message queued from the message handler. Note that enabling the outbox will create outbox documents within Cosmos DB partition. The default time-to-live or TTL for these documents in 7 days.
• We register PostIdAsPartitionKeyBehavior that we created in the previous step in the NServiceBus pipeline.

Worker Project – Message Handler

Next, we will consume the messages AddPost and AddComent sent in by the API in the worker handler.

Let us start with the handler for AddPost

public class AddPostHandler : IHandleMessages<AddPost>
{
    public async Task Handle(AddPost message, IMessageHandlerContext context)
    {
        var cosmosSession = context.SynchronizedStorageSession.CosmosPersistenceSession();
        var post = new Post(message.PostId, message.Title, message.Description, message.Author);
        cosmosSession.Batch.CreateItem(post);
        await context.Publish(new PostCreated
        {
            PostId = post.PostId,
            Author = post.Author,
            Description = post.Description,
            Title = post.Title
        });
    }
}

AddPostHandler.cs

AddPostHandler gets the Cosmos persistence session from the message handler context. We use Cosmos DB TransactionBatch to create a new Post in Cosmos and then publish PostCreated event to the Service Bus. NServiceBus outbox ensures that this operation is idempotent and the transaction is atomic.

Now, let us look at the handler for AddComment message.

public class AddCommentHandler : IHandleMessages<AddComment>
{
    public async Task Handle(AddComment message, IMessageHandlerContext context)
    {
        var cosmosSession = context.SynchronizedStorageSession.CosmosPersistenceSession();
        var postResource = await cosmosSession.Container.ReadItemAsync<Post>(message.PostId,
            new PartitionKey(message.PostId));

        if (postResource == null)
        {
            throw new Exception(
                $"Post {message.PostId} does not exist. Cannot add comment for the post that does not exist");
        }

        postResource.Resource.LastUpdatedDate = DateTime.UtcNow;
        cosmosSession.Batch.UpsertItem(postResource.Resource, new TransactionalBatchItemRequestOptions
        {
            IfMatchEtag = postResource.ETag
        });

        var comment = new Comment(message.PostId, message.CommentId, message.Content,
            message.CommentBy);
        cosmosSession.Batch.CreateItem(comment);

        await context.Publish(new CommentAdded
        {
            PostId = message.PostId,
            CommentId = comment.Id,
            Content = comment.Content,
            CommentBy = comment.CommentedBy,
            CreatedDate = comment.CreatedDate
        });
    }
}

AddCommentHandler.cs

The AddCommentHandler is slightly more involved.

• We first check if the parent post exists in Cosmos. It is possible that messages may come out of order and add comment request on the post is received before the post exists in the data store. If the post does not exist, we throw an exception. This allows the retry policy to kick-in and NServiceBus retries the message.
• We then update the LastUpdatedDate of the post. In the UpsertItem we check Etag of post that we are updating matches the one we retreive. Cosmos DB follows Last Write Win strategy. Setting IfMatchETag ensures the optimitic concurrency and prevents accidental overriding of the document.
• Next, we add the comment in the same transaction batch to ensure atomicity.
• Last, but not the least, we publish the CommentAdded event.

Running the sample application

To run the sample application, we need to start Api and Worker projects. Let us create our first post by calling create post endpoint through Swagger.

Create Post endpoint

Next, we use generated PostId and add our first comment by calling add comment endpoint.

Add comment endpoint

This will save our post and comment to the Cosmos DB.

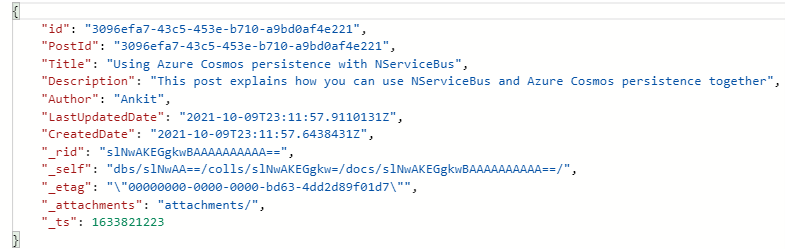

Post document in Cosmos

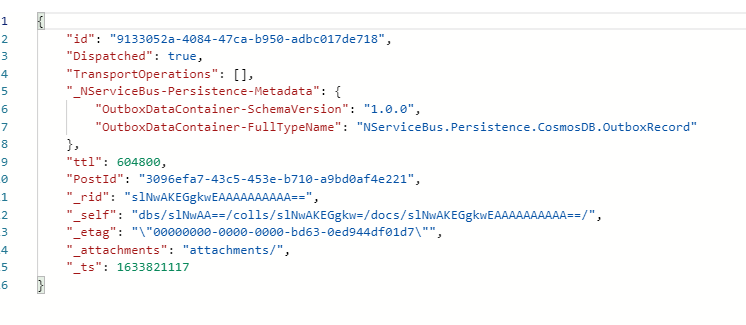

You will also notice a couple of outbox documents created by NServiceBus in Cosmos.

Outbox document in Cosmos

As mentioned earlier, the default TTL for the outbox document is seven days. It ensures that no duplicate messages are reprocessed within this time range.

A word of caution

Enabling outbox with NServiceBus Cosmos persistence can lead to duplicate messages when the Cosmos DB RU limit is reached. It is an open issue with NServiceBus Cosmos DB SDK. As a workaround, you can increase your Cosmos DB RUs or switch to Cosmos DB Serverless. Alternatively, you can keep your handlers idempotent instead of relying on the outbox feature.

Don't have much context at this point but it seems like something that would need to be added to the persistence as transport cannot be slowed down. An alternative would be do perform idempotency check in the handlers rather than rely on the outbox feature.

— Sean Feldman (@sfeldman) September 21, 2021

Wrapping Up

In this post, I have gone into detail about how you can use NServiceBus and Azure Cosmos DB together. I hope you find it helpful. If you have any further questions on this topic, please feel free to reach out to me on my Twitter handle or through the comments section below.
